产品描述
用途 APPLICATION

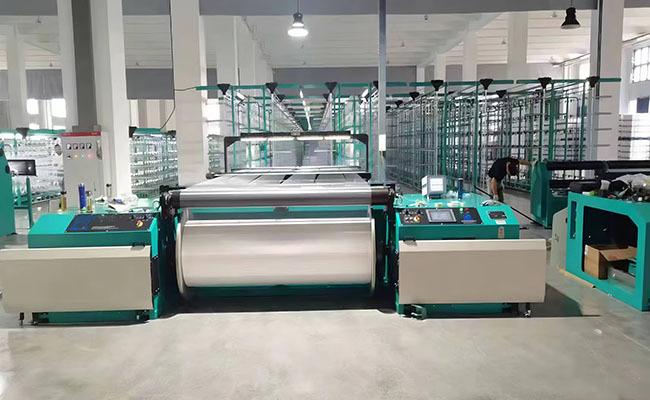

高速宽幅整经机为高性能整经设备，可以同时整经2200根纱线到一个整幅盘头上。适用于锦、涤长丝，低弹丝、粘胶丝、棉纱、纱等短纤纱。
The HIGH SPEED SUPER WIDE WARPING MACHINE is a product that can warping a whole beam, with a number of yarns at about 2200 ends. It is suitable for warping cotton yarn , viscose, blending yarn, polyamide and polyester filament , low elastic polyester fiber, viscose, and short-fiber yarn .
特点 FEATURES
1、机型新颖、操作简便、智能识别、各种数据自动保存；
2、速度跟踪自动控制、自动控制检测机构、失电保护系统；
3、盘头装卸由气动驱动，并作直线升降，运作平稳，定位精确，主轴制动采用气动制动器；
1.This product adopts super hard 1.Novel type , simple operation , intelligent identification , auto - reservation of data;
2.Auto- controlled speed track and auto - controlled inspecting machine and power cutting protection system;
3.The load and unload of the beam is controlled pneumatically, up and down in line, the motion is stable and position precise, The break of main shaft adopts pneumatic brakes;
主要技术参数 THE MAIN SPECIFICATION
盘头尺寸：34.5"x100"50" x 100"（盘片和档距可根据客户需求定做）
整经机速度：600-800m/ min
纱架头数：2200头（可根据客户需要制作）
动作控制：气动
气源：0.8 Mpa
照相自停
加装静电消除装置（静电仪、静电棒）
配多层开启旋转纱架四出纱 FDY 推车式纱架额定总功率：32KW
Beam size :34.5" x 100"50" x 100"( Warped beam size can be made according to customer' s need )
Warping line speed :600-800 m / min
Creel qty :2200 ends ( can be made according to customer' s need )
Movement method : Pneumatic
Air source :0.8 Mpa
Photography self - stop technology
Equiped with electrostatic elimination device
Equiped with multi layer open rotating yarn frame ,4 yarn out , FDY
cart type yarn frame
Total power rated :32KW
